Description

Features

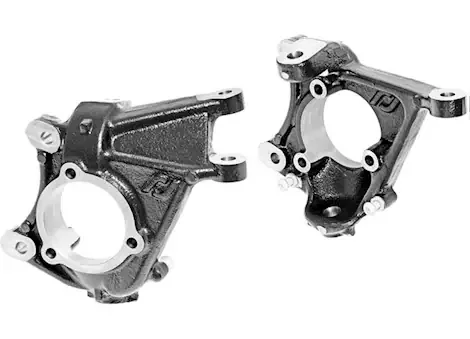

• Includes: Left side high steer steering knuckle, Right side high steer steering knuckle, (4) Steering Stop Bolts, (4) Steering Stop Bolt Jam Nuts, (4) Ball Joint Cotter Pins and Step-By-Step instructions
• A minimum of a 2.2 in. bump stop extension is mandatory to keep components from crashing under full articulation range conditions. See our RJ-107101-101 adjustable front bump stop kit for an easy to use solution.
• Additional adjustable steering stops ahead of the axle have been added, giving you firm, fore and aft steering stops on both wheels at all times, easing strain on other components.
• Intended to be used with a minimum of a 17 in. diameter wheel and up to a 6 in. wheel backspacing.
• Knuckles are manufactured to greater than OEM standards in every way
• Premium iron castings, gloss black finish and precise machining for a component that installs just like factory
• Retains factory ball joints, unit bearings, outer axles, brakes and dust shields.
• These new knuckles raise both the tie rod and drag link 2 3/4 in. as well as pushing the tie rod outward, away from the axle slightly, allowing for tighter (JL/JT) steering angle over that of stock JK and 1 ton axles.
